Motor Starters

How Does a Motor Starter Work?

A 3-phase electrical motor starter switch features a contactor and an overload relay that contributes to its functioning. A contactor makes or breaks the current flowing to the motor. However, the overload relay prevents the motor from getting damaged due to overcurrent or overheating. The overload relay is usually set to a maximum load that the motor can safely handle. If an overload condition occurs, the relay opens the motor starter control circuit and turns off the motor. A motor starter is typically wired to two types of circuits – a power circuit and a control circuit. The power circuit uses overload relays and the starter contacts to pass the main voltage to the motor.

The control circuit comprises a contactor coil that produces an electromagnetic field. The power contacts are pulled to a closed position by this coil. This allows power flow to the motor from the main voltage. This control circuit enables remote control of the motor operation. The control circuit is usually wired in two ways – two-wire method and three-wire method. The two-wire method uses maintained contacts, including sensors, selector switches, thermostats, float switches, and so on. However, the three-wire method uses momentary contact pilot devices and holding circuit contact.

Types of Motor Starters Offered by North America Phase Converter

We provide the following types of motor starters:

• Manual Motor Starters: These motor starting devices are operated manually. Manual motor starters are easy to operate and feature a rotary knob or button that allows turning on or off the motor connected to it. These starters offer overload protection, but do not provide low-voltage protection. This means they cannot break a control circuit during power loss. In this scenario, the motor would restart automatically when the voltage is restored. This can be dangerous for some advanced applications. Manual starters are generally preferred over types of starters due to the following reasons:
  • These motor starting devices deliver safe operation in most low-power motor applications of 10 horsepower or less.
  • Compact sizes of these motor starters make them suitable for various applications.
  • These devices are available with a wide range of enclosures.

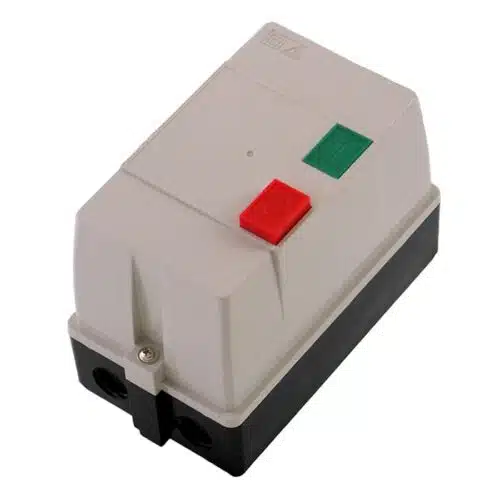

• Magnetic Motor Starters/Direct Online (DOL): These motor starting devices rely on coil energization to hold and close the contacts. The magnetic motor starter automatically breaks the control circuit during a power failure. It holds the contacts open, and removes power to the motor. The magnetic motor starters offer overload and low voltage protection to motors, enhancing their reliability in various industrial applications. Magnetic motor starters have gained popularity for the following reasons:
  • These motor starting devices offer protection through their pull-in and holding characteristics.
  • They possess simple operations with two push buttons.
  • These devices possess automatic and remote operation that excludes the operator.

Benefits of Buying Motor Starters from Us

You can choose motor starters from North America Phase Converter for reliable, efficient, and safe motor control operations. You are set to benefit in the following ways on buying industrial motor starters from us:

• Superior Durability and Quality: We provide high-quality motor starters that are proven to ensure long-lasting performance in demanding industrial environments.
• Improved Safety Features: Our 3-phase motor starters feature advanced safety mechanisms, including robust overload protection and short-circuit safeguards, ensuring advanced protection to your equipment.
• Expert Support and Service: Our knowledgeable team will help you choose the right device for your application and provide reliable after-sales support.
• Cost-effective Solutions: Our industrial motor starters are proven to deliver excellent value, reducing downtime and maintenance costs.

Tips to Choose Motor Starters for Your Application

Choosing motor starting devices for your application would require careful consideration of factors. Although our experts will guide you through the process, here are some general tips that will be helpful in this context.

• Identify the Application Requirements: Begin with motor’s specifications, such as single and three-phase type, voltage, operational requirements, and size – horsepower and kilowatts. Aside from this, you can focus on the load type – variable, constant, and heavy-duty to choose the starter that is capable of handling demands.
• Assess Overload Protection Needs: What maximum load will your motor adhere to? Does it need overload protection? Once you get answers to these questions, choose the starter with the correct overload protection ratings. Ensure the starter features adjustable settings for precise protection of your motor.
• Evaluate Starting Method: You can choose the appropriate starting method based on motor functionality. For instance, reduced-voltage starters such as soft and star-delta starters are suited for applications that need smoother starts to avoid power surges or mechanical stress. Similarly, the full voltage (FVNR) method is suited for starters that provide direct power to the motor.
• Address the Environmental Factors: Where do you plan to use the motor starter – for indoor or outdoor installations? In addition to this answer, you must address the temperature, humidity, dust or hazardous conditions, and so on.
• Compliance with Starters: Ensure the motor starter complies with industry standards, such as the National Electrical Code (NEC) for proper installation and operation and Underwriters Laboratories (UL) for safety certification.

Applications of Motor Starters

Our motor starting devices ensure the safe and efficient operation of electric motors across 230V and 480V applications including:

• Small Machine Tools: Motor starters provide dependable and precise control for small machine tools, including drill presses, lathes, etc.
• Agricultural and Farming: Our motor starters are used to ensure smooth motor operation, prevent overloads, and reduce downtime, enhancing productivity in tasks like watering crops, processing grains, and managing ventilation systems.
• Pumps: Our motor starters ensure smooth starts and stops for water and sump pumps. They provide overload protection to prevent motor damage under varying load conditions.
• Electrical Machinery: Our motor starters deliver robust motor control across various electrical equipment in industrial and commercial settings.

Get Started Today and Power Your Operations with Confidence!

Upgrade your motor control system with the durable, efficient, and safe motor starters offered by North America Phase Converter. Call us now or visit our website to explore motor starters and get expert assistance in selecting the perfect solution for your needs!



FAQs

1. What is the difference between a motor starter and a motor controller?

A motor starter is a type of motor controller, which helps start and stop a motor. However, a motor controller may perform even higher functions, such as controlling the speed, amplitude, and direction of a motor.

2. Can I use the same motor starter for different motor sizes?

This would depend on the motor starter and motors you may want to use. For instance, a constant current soft starter can only be used with a specifically-sized mechanically coupled motor. However, a soft starter with TVR start profile can be used for motors of different sizes that are not mechanically coupled.

3. How do I troubleshoot a motor starter that isn’t working?

If your motor starter is not working as expected, follow the troubleshooting steps below to identify and resolve the issue.

• Verify the power supply: Check the voltage – 230V or 480V and look for blown fuses in the power supply line.
• Inspect the control circuit: You can examine wiring, test control power and examine wires in the control circuit.
• Examine the contactor: You can check the coil and inspect the contacts to identify any signs of wear and tear. Use a multimeter to check if the contactor’s coil is energized when the starter is activated.
• Evaluate overload protection: Check the overload relay settings to match the motor’s specifications. If the motor starter has tripped due to overload, you can reset the overload relay.
• Assess the Condition of Motor: Check the condition of the motor to see it isn’t seized or damaged. Also, see if there is proper wiring and connections between the motor and the starter.
• Check the Environmental Factors: Ensure the starter isn’t exposed to moisture or overheating as well. You can clean the enclosure occasionally to prevent contamination that causes malfunction.

4. What are the typical maintenance requirements for motor starters?

Regular maintenance is necessary to ensure the reliable performance of motor starters and extend their performance and lifespan. Here are some basic maintenance tasks that you can perform to ensure their lasting performance.

• Check for signs of damage, wear and tear, overheating on relays, wiring, and contactors.
• Tighten all electric connections to prevent loose contact or arcing.
• Tighten loosened screws on connectors or terminal blocks.
• Inspect contactors for corrosion and carbon building.
• Check the working of overload relays and reset relay settings.
• Perform voltage and current testing.

5. Do motor starters have a lifespan? How often should they be replaced?

Most motor starters are designed to typically last for 10 years if properly maintained. Load and operating conditions and lack of maintenance are some factors affecting their lifespan. These devices warrant replacement due to frequent failures, visual signs of wear and tear, outdated technology, and manufacturer’s recommendation.

6. What happens if the overload protection in a motor starter fails?

The motor starter may overheat, deteriorate and fail if its overload protection fails.

7. Can I consider these industrial motor starters for harsh environments?

Yes, you can utilize our industrial motor starters in harsh environments. They feature durable enclosures as well as protective features, which operate efficiently in harsh conditions, such as dusty environments, high temperatures, high humidity, and so on.

8. Do you offer support for installation and troubleshooting of motor starters?

Yes, we provide expert advice on troubleshooting, installation, and maintenance. Our technical team is always ready to assist with your queries.

9. Can I use these motor starters for single-phase motors?

We provide motor starters for three-phase motors; however, you can contact us for single-phase applications.
