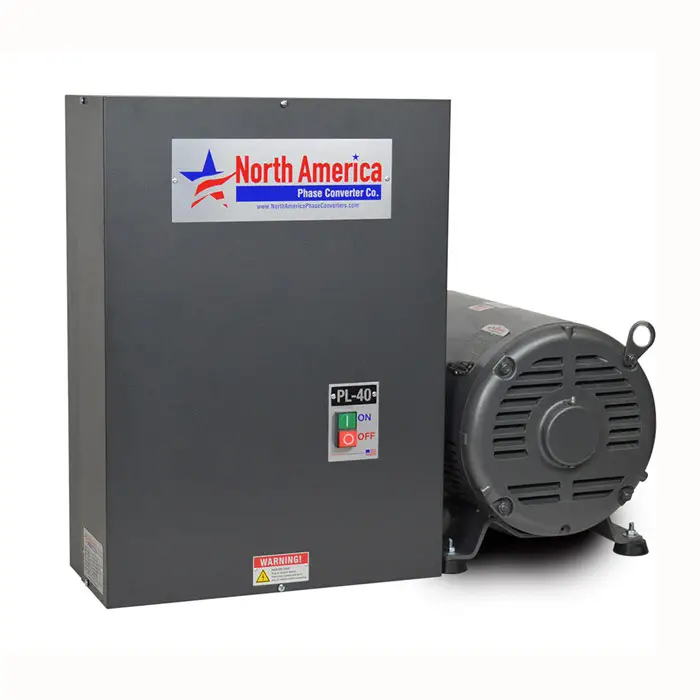

Name: Pro-Line PL-40 Rotary Phase Converter
SKU: PL-40-1-0
Availability: InStock

Pro-Line is the Professional Series, digital start, CNC-rated, general-purpose single-phase to three-phase rotary phase converter designed to take standard single-phase energy and supply full running current to three-phase equipment.

What’s Included with the Pro-Line PL-40

Control Panel
- NEMA 1 Enclosure (Indoor)
- Built-in Motor Starter
- Digitally Controlled and Protected Start Circuit
ABB / Baldor Idler-Generator Motor
- ODP (Open Drip Proof) – Indoor Rated
- Soft Start
10-Year Parts / Lifetime Labor Warranty
Promotional Flat-rate Shipping ($199.95) via freight truck in the Continental US to a commercial location
- Additional fees apply for Residential & Lift-gate Delivery
Financing Available
- Click here to apply online in minutes
Stock Status: In stock

Description

PL-40 BEST SIZED FOR: pl40
Best Performance Single Motor Start: 20HP
Recommended 3 Phase Sizing: 50 Amps
Total Combined Load: Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 30HP… Table Saw, Drill Press, Milling Machine
Medium Loads up to 25HP… Belt Sander, Grinder, Mixer
Hard Loads up to 20HP… Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 15HP (Consider Smart-Boost™)… Air-Compressor, Submersible Pump

PL-40 SPECS (Download Spec Sheet): pl40 ul-40 ul40
Minimum Single Phase Input Circuit: 100 Amps
Single Phase Input Voltage: 208 – 245 Volts
3 Phase Output Voltage: 208 – 245 (Based on Input)
Voltage Balance: 2 – 5%
Idler HP Size: 40
Model: PL-40
