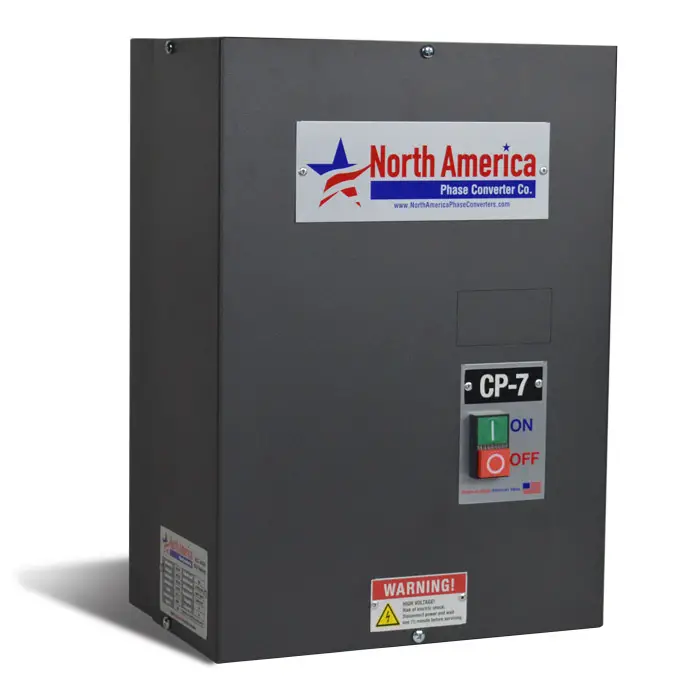

Rotary Phase Converter Control Panel CP-7

CP-7 ROTARY PHASE CONVERTER CONTROL PANEL BEST SIZED FOR:  cp7
Best Performance Single Motor Start:  3HP
Recommended 3 Phase Sizing:   11 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 5HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 5HP… Belt Sander, Grinder, Mixer
Hard Loads up to 3HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 2.5HP (Consider Smart-Boost™)…  Air-Compressor, Submersible Pump

CP-7 SPECS (Download Spec Sheet):  cp-7
Minimum Single Phase Input Circuit:   20 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   2 – 5%
Added Idler HP Size:   7.5
Model:  CP-7
