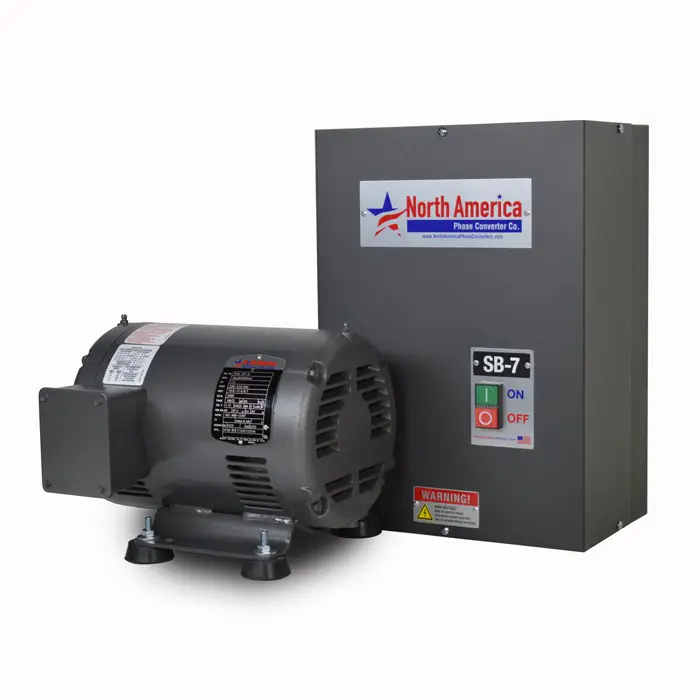

Smart-Boost Rotary Phase Converter SB-7

Smart-Boost Rotary Phase Converter SB-7

$1,244.00

Smart-Boostâ„¢ solid-state digital control rotary phase converters offer an extra 600% heavy-duty motor load current boost, helpful for hard starting air compressors, sub pumps, flywheels, and gearhead lathes.

What’s beyond Industry Standard… Smart-Boostâ„¢ SB-7

  • Control Panel
    • Solid State Relay
    • Built-in Motor Starter
    • NEMA 1 Enclosure (Indoor)
    • Digital Control 600% Current Booster
    • Self Healing Oil-Filled Motor Start & Run Capacitors
  • ABB-Baldor Idler/Generator Motor
    • Soft Start
    • ODP (Open Drip Proof) – Indoor Rated
    • Low Impedance / High-Efficiency Design
  • 10-Year Parts / Lifetime Labor Warranty
  • Promotional Flat-rate Ground Shipping ($79.95) in the Continental US
  • Financing Available
    • Click here to apply online in minutes

    • 75 $
    • 135 $
    • 98 $
    • 20 $
    • 175 $
    • 65 $
    • 20 $
    • 75 $
SKU: SB-7-1-D Categories: ,

Description

SB-7 BEST SIZED FOR:  sb7
Best Performance Single Motor Start:  3HP
Recommended 3 Phase Sizing:   10 Amps
Total Combined Load:  Please Call for Sizing (877) 545-2926

Easy Motor Loads up to 5HP…  Table Saw, Drill Press, Milling Machine
Medium Loads up to 5HP… Belt Sander, Grinder, Mixer
Hard Loads up to 3HP…  Gearhead Lathe, Dust Collector, Fan
Very Hard Loads up to 3HP  Air-Compressor, Submersible Pump

SB-7 SPECS (Download Spec Sheet):  SB7
Minimum Single Phase Input Circuit:   20 Amps
Single Phase Input Voltage:   208 – 245 Volts
3 Phase Output Voltage:   208 – 245 (Based on Input)
Voltage Balance:   5 – 10%
Idler HP Size:   7.5
Model:   SB-7

Additional information

Weight 109 lbs
Dimensions 18 × 12 × 8 in
